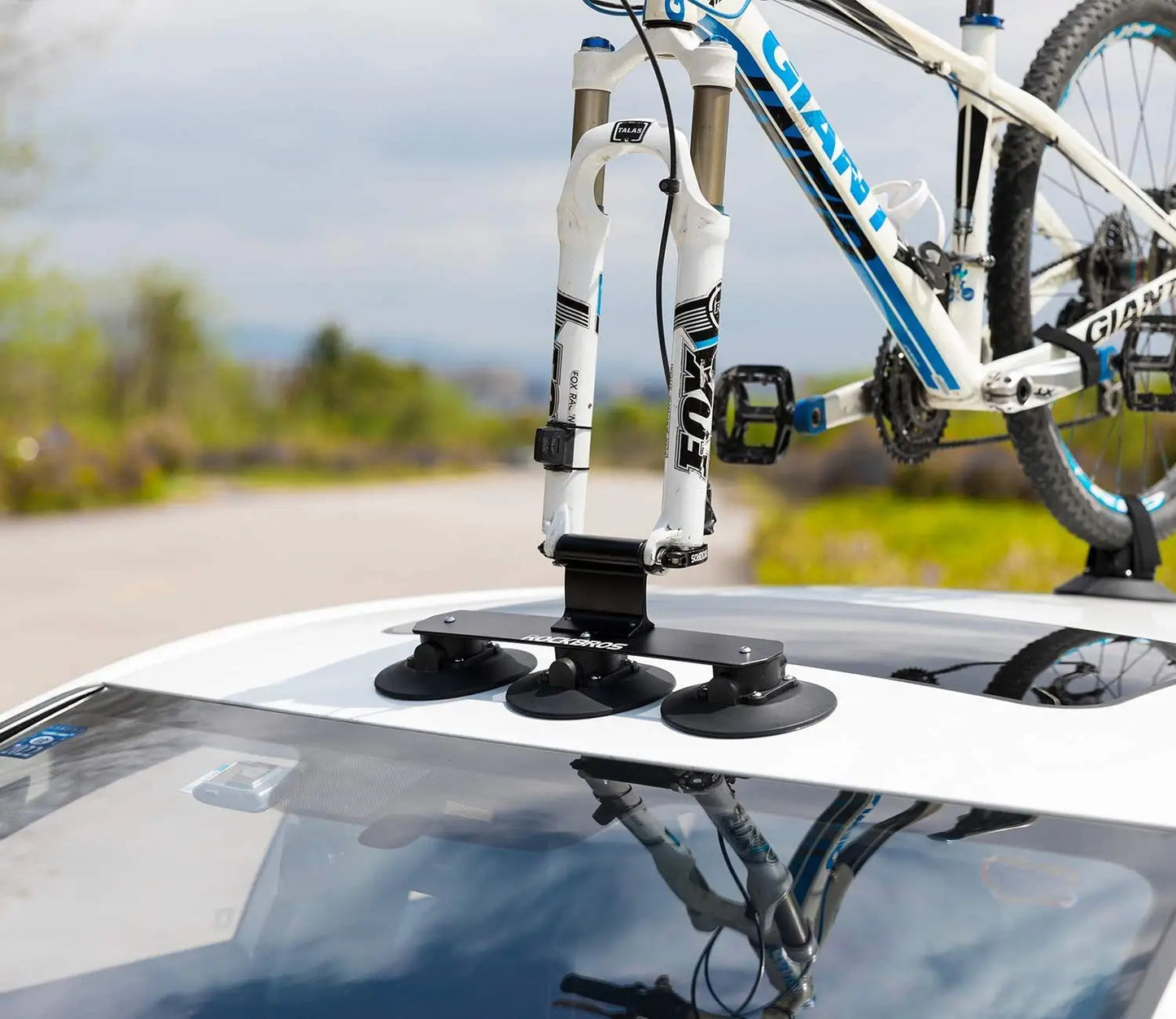

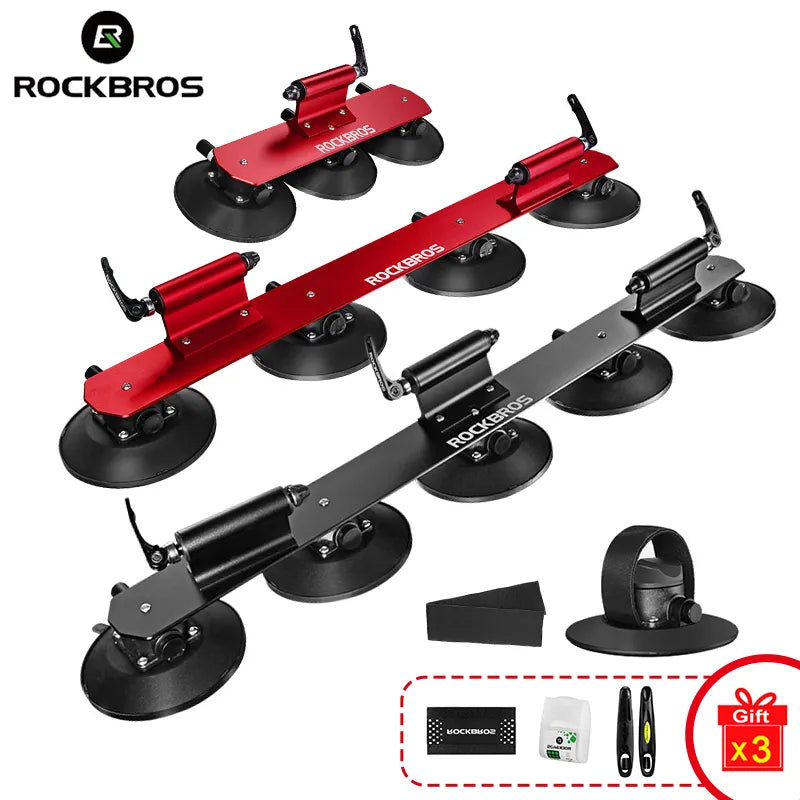

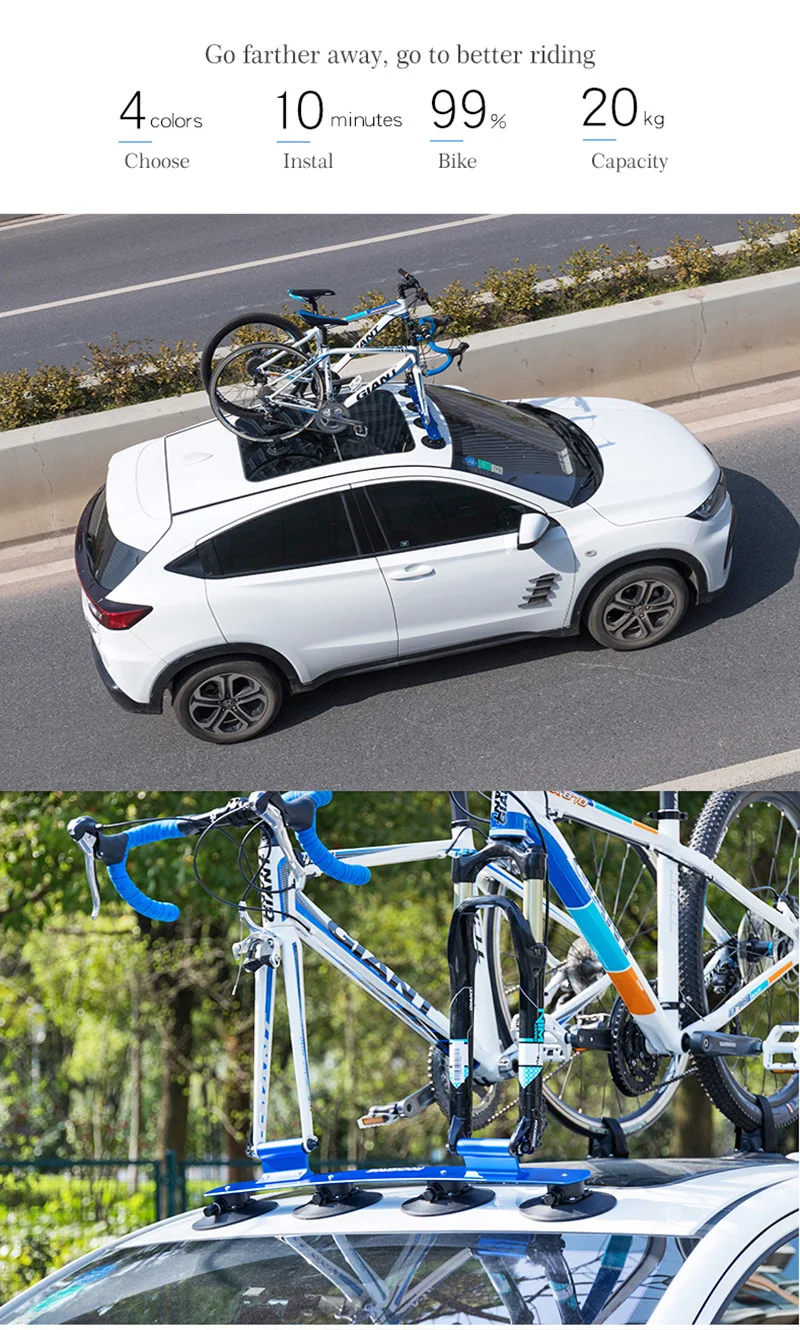

ROCKBROS Vacuum Suction Roof-Top Bike Carrier Rack
ROCKBROS Vacuum Suction Roof-Top Bike Carrier Rack
SPECIFICATIONS
Brand Name: ROCKBROS
Capacity (Load): 20KG/bike
Type: Car Racks
Size: 47*13cm
Material: aluminum
Braking System: Disc Brake
Color: Black / Red / Green

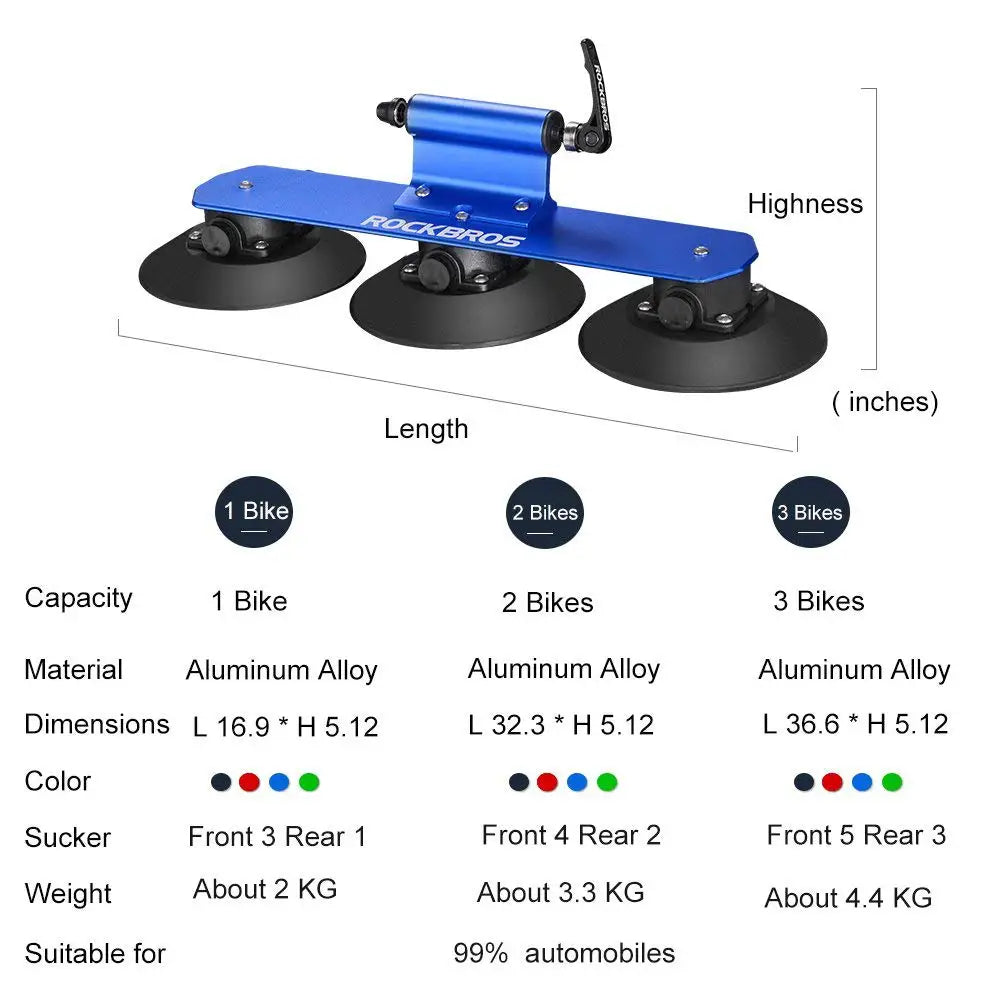

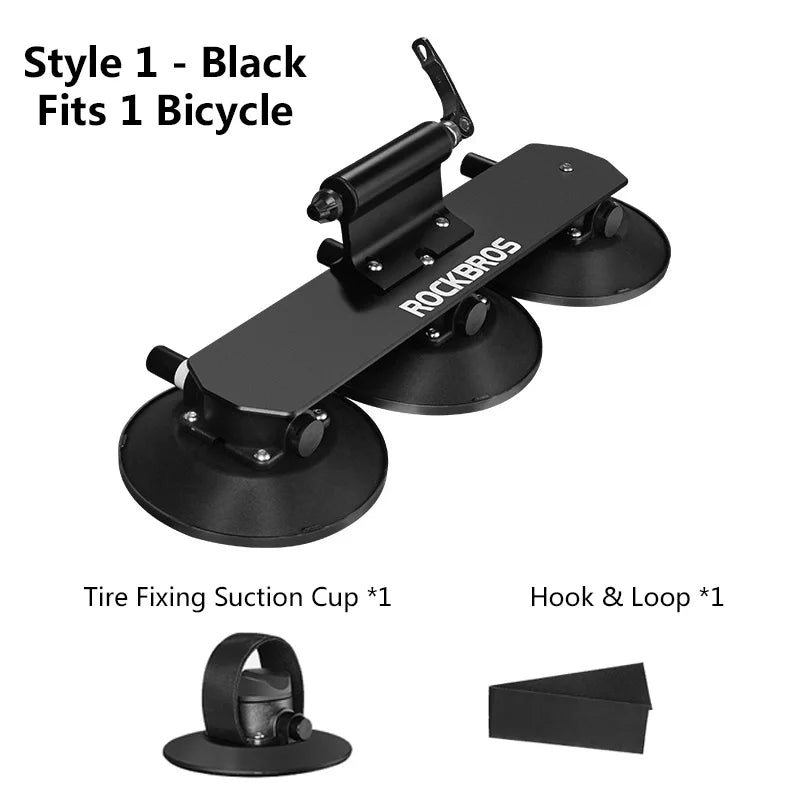

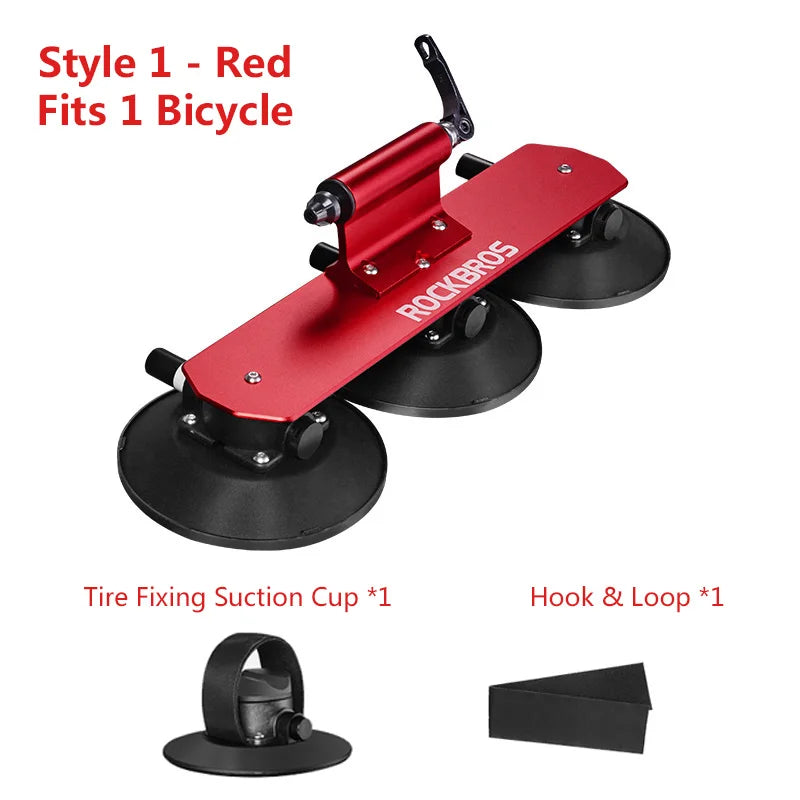

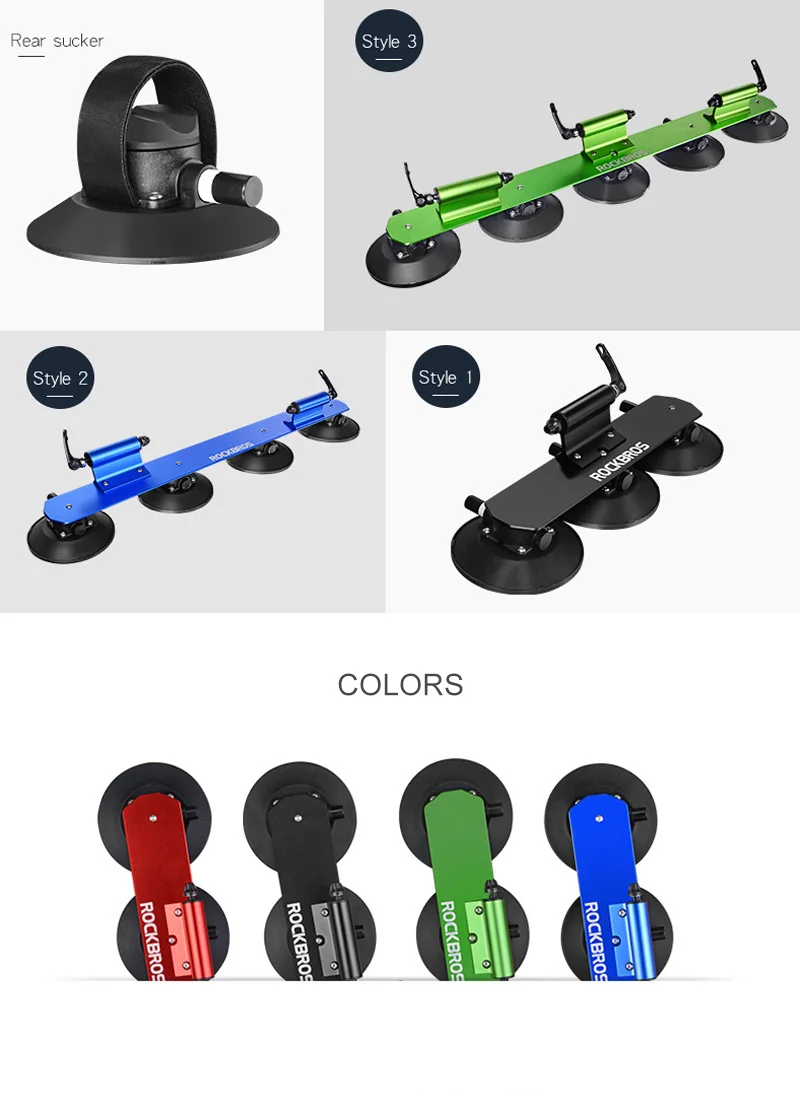

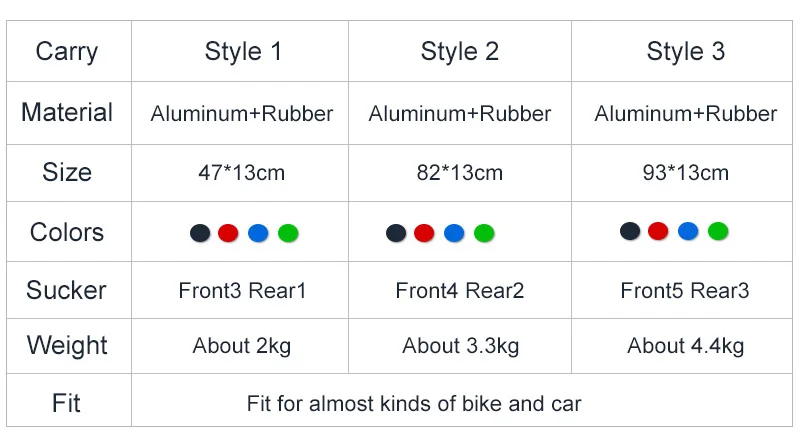

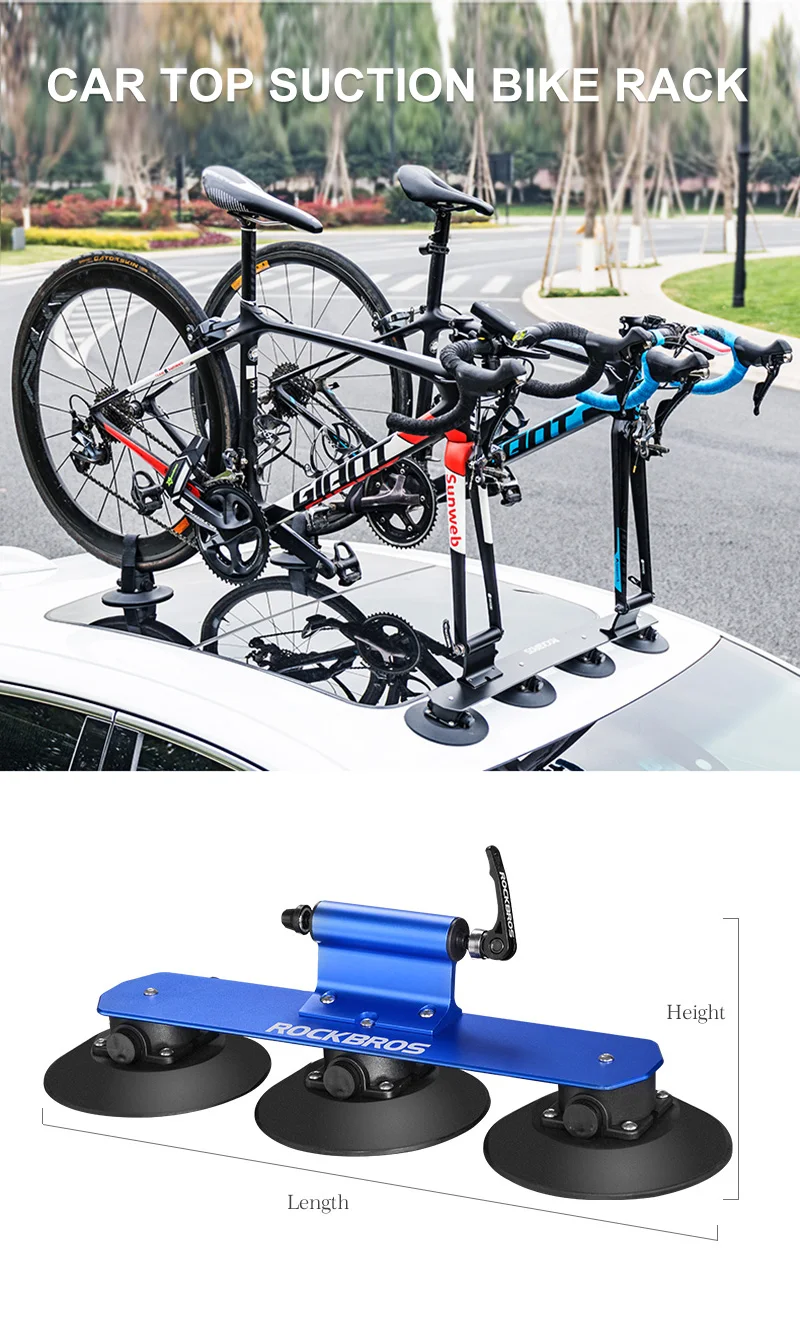

Style 1-Size: 47*13cm (L*W)

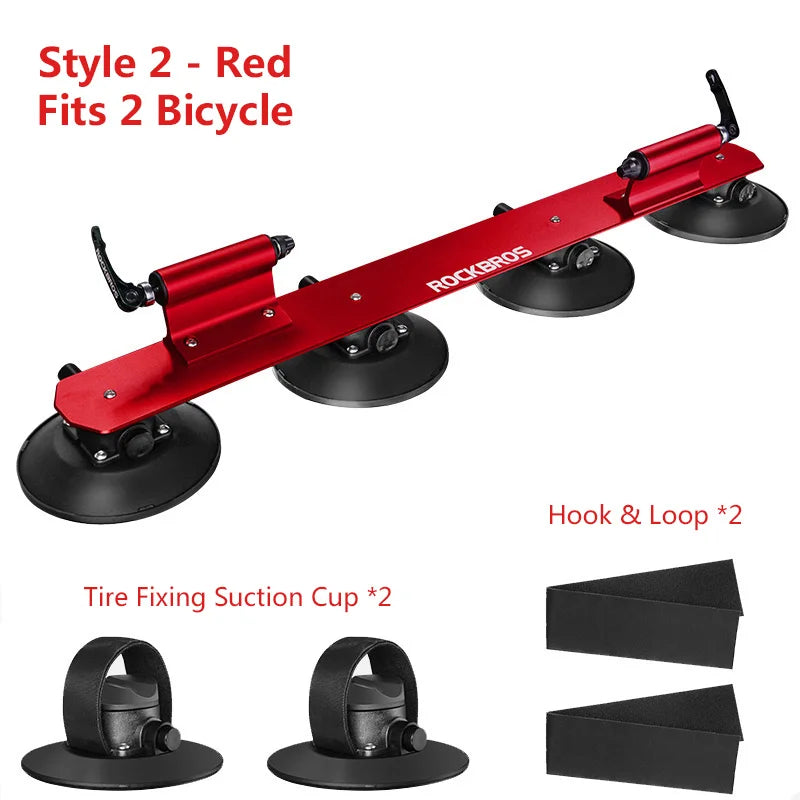

Style 2-Size: 82*13cm (L*W)

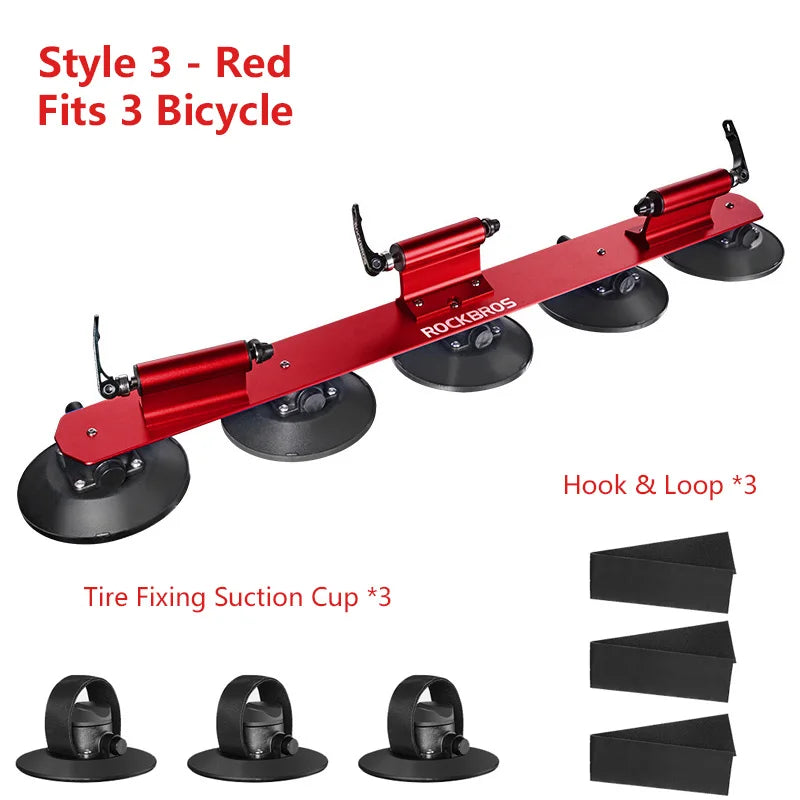

Style 3-Size: 93*13cm (L*W)
Weight: about 2 / 3.3 / 4.4kg
Material: Aluminum alloy + suction cup
Name: Bicycle Carrier
Fit bike styles 1: Road Bike
Fit bike styles 2: MTB Bike Mountain Bicycle
Fit bike: Road Bike MTB Universal

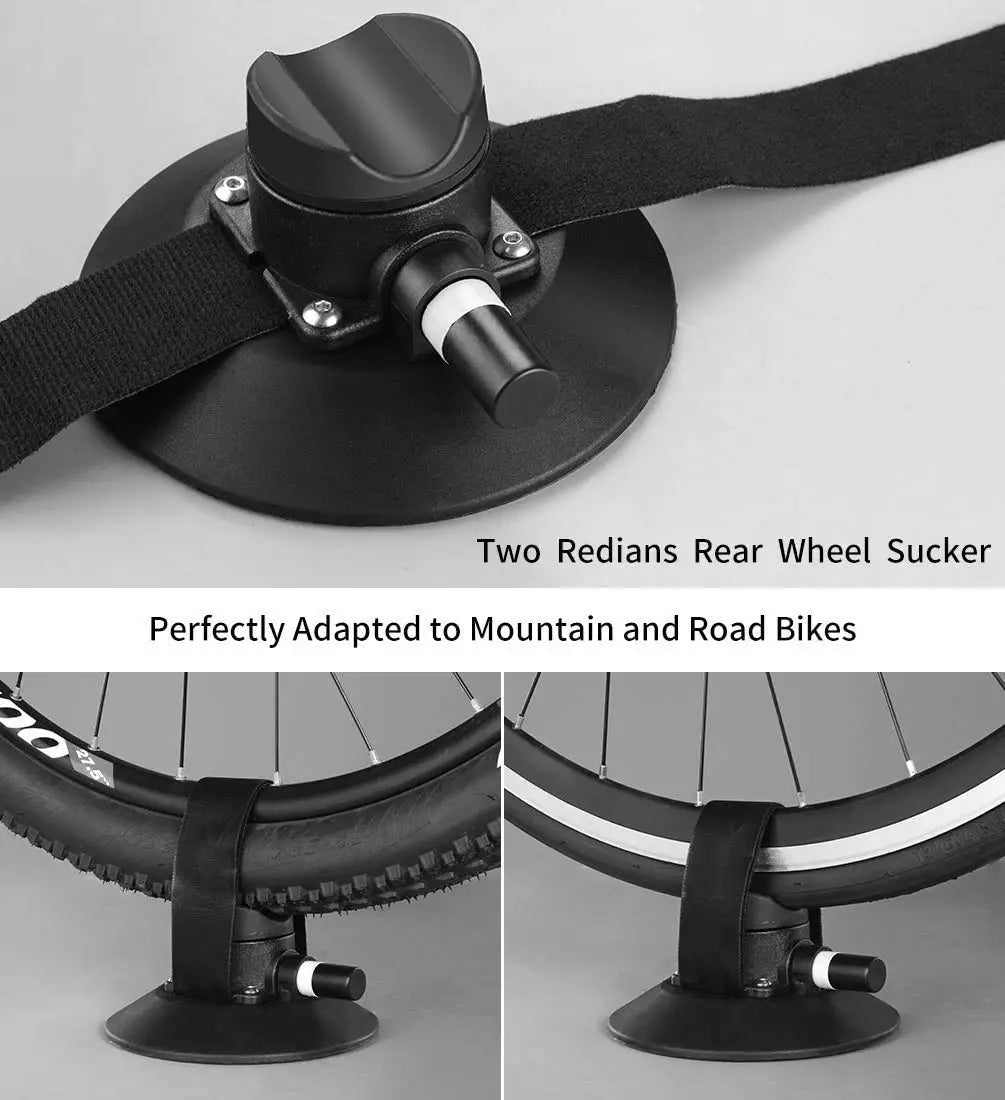

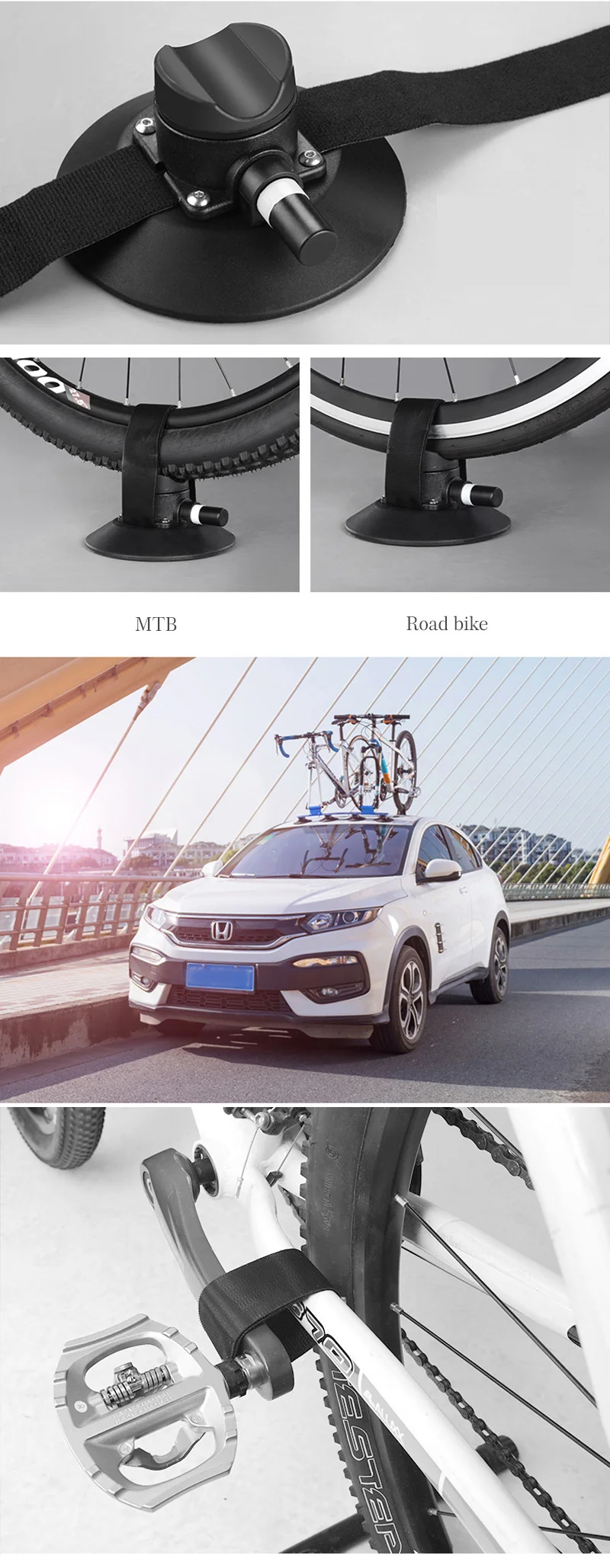

Suction cup Size: Diameter 15cm
Capacity: 1 Bike & 2 Bikes & 3 Bikes
Feature: Simple install-ten minutes,Lightweight
Name: Bicycle Rack Suction Roof-top
For the first use, please add enough lubricating oil to each button (white) to ensure it can work normally. If you have any questions, please feel free to contact us. thanks!
Extra 3 gifts:
1 set Bike Tire Repair Kits (No glue)
1 pcs Bicycle Frame Protector
1 Pair Tire Levers (random color)
Note: Only shipping from China it comes with above three gifts. If shipping from overseas warehouse, there are only two gifts (1 set tire repair kits & 1pcs frame protector!)
------------------------------
Attention:
1) All bike racks will be shipped within 3 days via UPS/DHL/Fedex/SF Express instead of Normal Airmail. In order to help buyers save shipping costs, we will choose standard shipping methods with moderate timeliness and cost for individual countries, such as Aliexpress Standard Shippiing to South Korea, Russia, etc. Movigor brand promise: no matter where you are in the world, you can receive the package within 7-15 days normally!
2) But in case your address is located beyond these Express services, we will ask you for extra US$30 for remote service fees required by Express! Please kindly understand.
3) Item doesn't include local customs tax, If the item is held by your local customs asking for taxes, you must pay for them and clear it, otherwise the item would be returned and the freight fees would be deducted from your order!
4) There are separate bracket suction cups and tire fixing suction cups for sale in the following link.

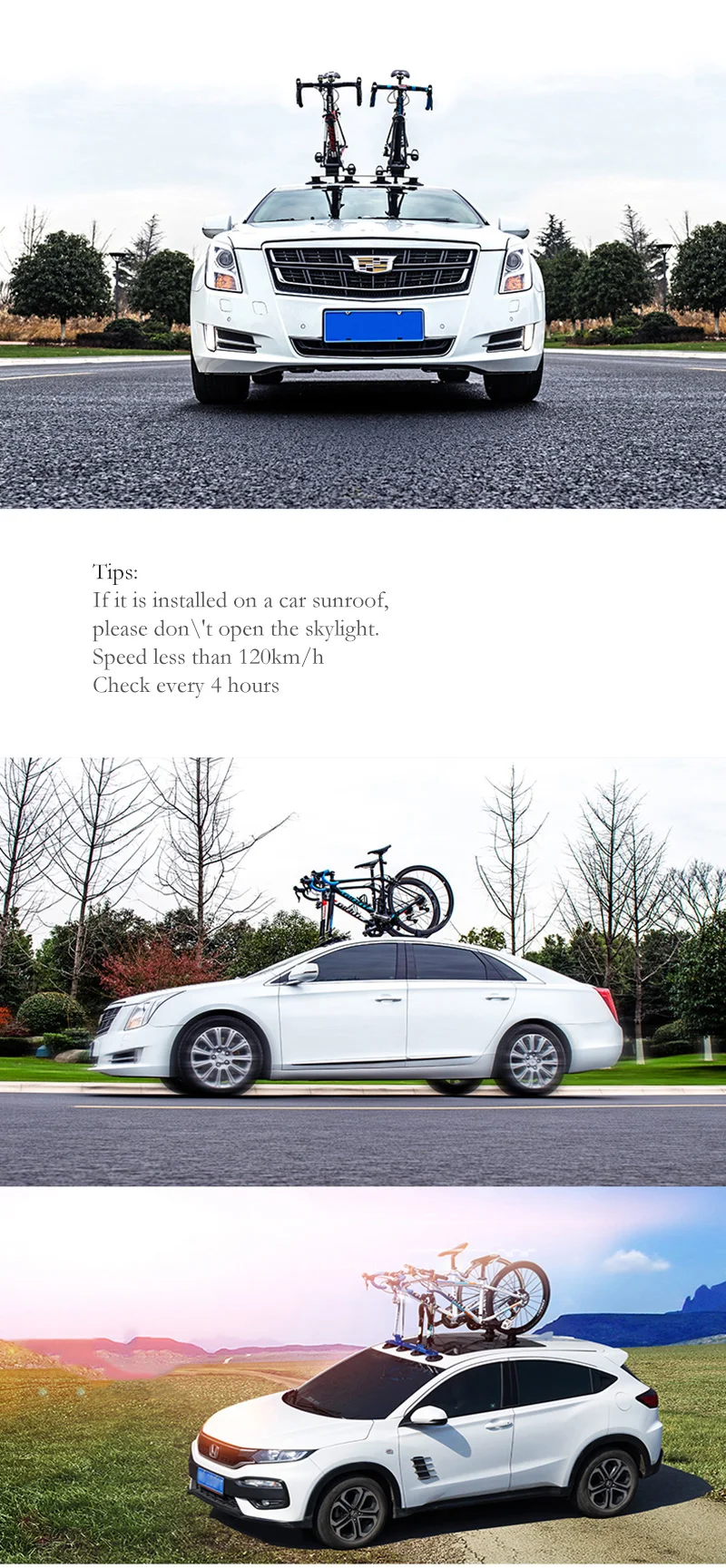

5)
* If it is installed on a car sunroof, please don't open the skylight.
* Speed less than 120km/h
* Check every 4 hours to ensure its safety!
6) Optional adaptors for your front fork

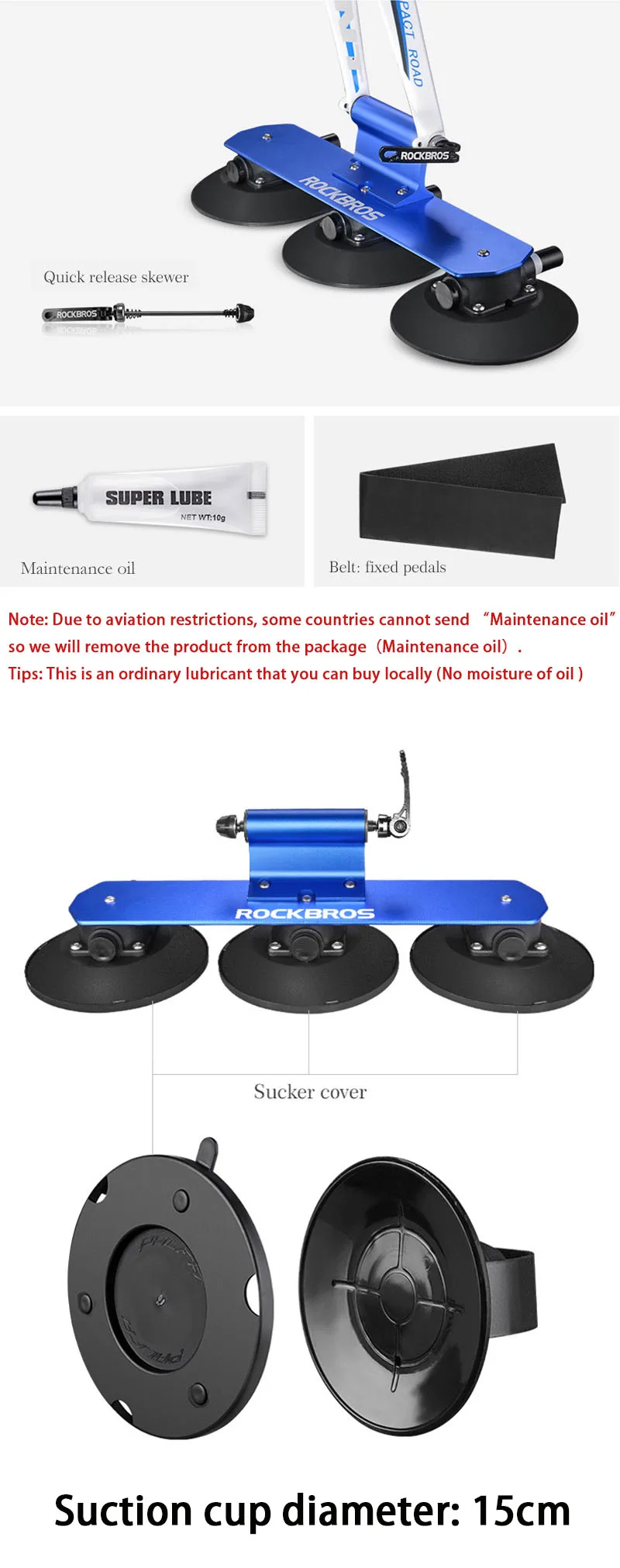

The standard accessories come with a quick release (4.4mm with 100 length) and adaptors (5mm with 100mm length).
Besides, we summarize some questions and answers about the adapter to be needed or not:
Q1: When do you need the adapters?
A1: ROCKBROS bike carriers are suitable for bike fork widths under 110mm. You can easily install the bike with quick release, but for the thru-axle bike, you need to buy an adapter separately.
Q2: What size for the adapters do we have?
A2: Total 5 sizes, they are 9mm*100mm, 12mm*100mm, 15mm*100mm, 15*110mm, and 20mm*110mm.
a. 9mm front hub adaptors for 100mm axle length
b. 12mm front hub adaptors for 100mm axle length
c. 15mm front hub adaptors for 100mm axle length
d. 15mm front hub adaptors for 110mm axle length
e. 20mm front hub adaptors for 110mm axle length
Please click the following link to buy the Suction cups and the Adapters if needed:
Product Details:
Name: Bicycle Car Rack
Model: XP1001 / XP1002 / XP1003
Color: Black, Red
Material: aluminum alloy body + rubber suction cup
Weight: About 2kg, 3.5kg, 4.6kg
Style: Fit 1 bike, 2 bikes, 3 bikes(Universal MTB and Road Bike)

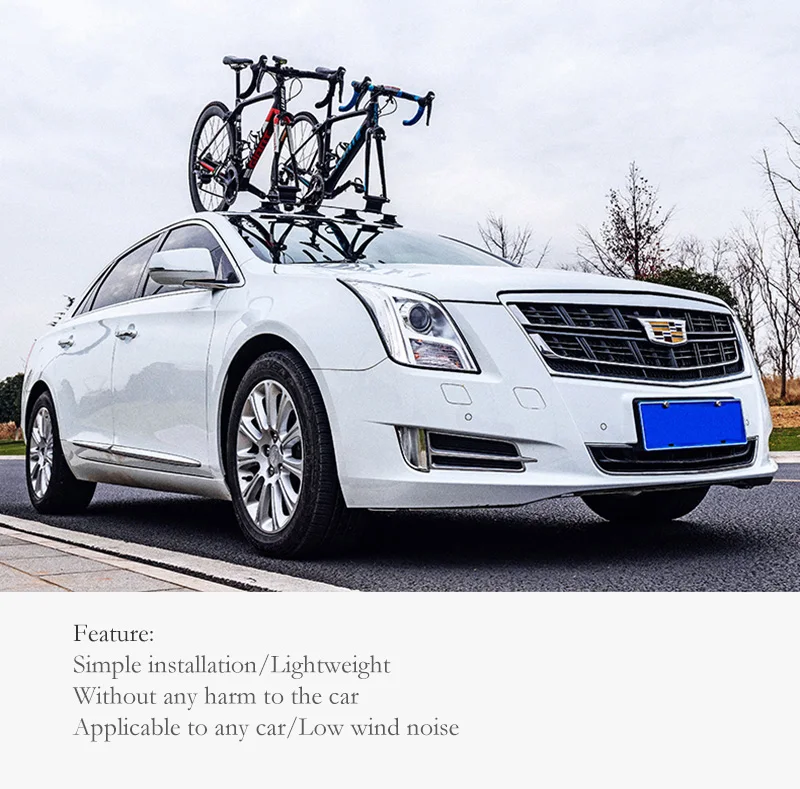

Feature:
1: Simple installation
2: Lightweight
3: Without any harm to the car
4: Applicable to any car
5: Low wind noise
6: It can hold bicycle cargo up to 25 kg

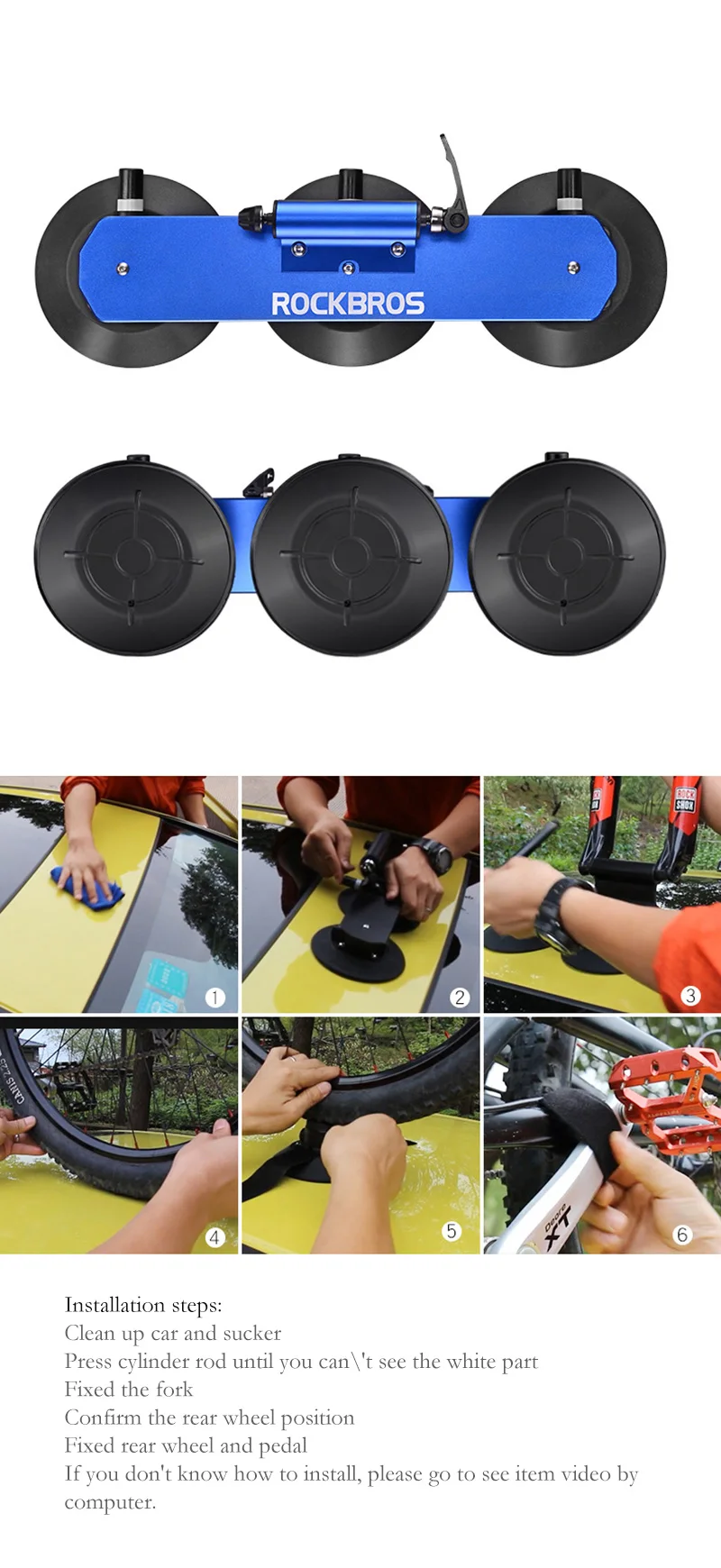

Installation steps:
1) Clean up car and sucker (it's better to spray some water on the cup bottom or the car surface!)

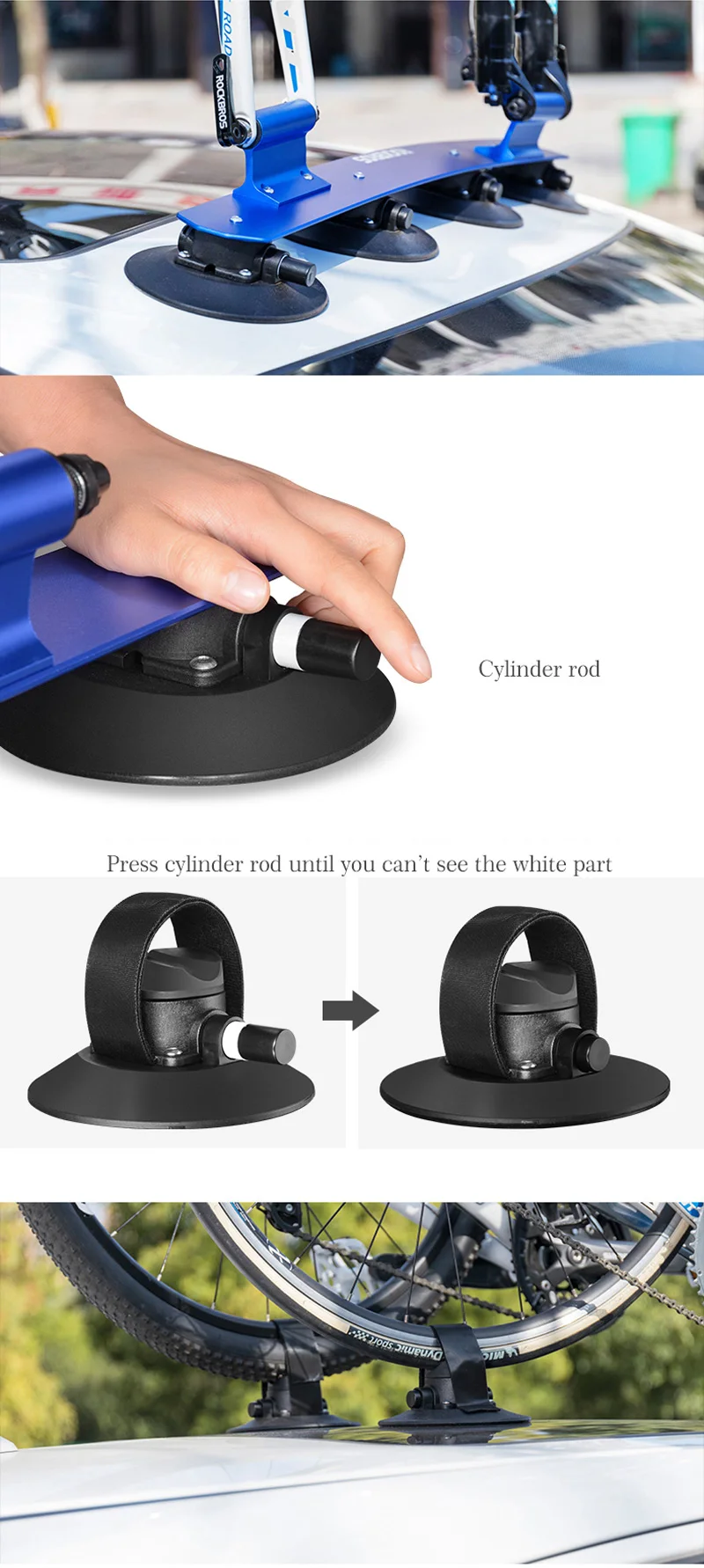

2) Press cylinder rod until you can't see the white part
3) Fixed the fork
4) Confirm the rear wheel position
5) Fixed rear wheel and pedal
If you don't know how to install, please watch the video for reference!
Precautions when using Suction Bike Rack:
1. The maximum load of one-bike rack is 20KG. The load-bearing capacity of the second-bike rack and third-bike rack is more than 20KG, but please consider the bearing capacity of your own car.
2. When used on sunroof, pls DO NOT open the car sunroof when the rack is installed, and also it is necessary to confirm there are no cracks or small holes on the sunroof before installation.
3. Do not use the bike rack on the convertible top and roadster top car.
4. Before using, please check all the bolts are tightened.
5. Wipe the suction cup and car roof surface with a clean wet towel, prevent the roof rack from sliding due to accumulated water.
6. Make sure there is NO obvious sign of rebound from the cylinder rod.
7. Speed should be less than 120 Km/h when using the bike rack, and please check whether the bike rack still works normally every 2 hours.
8. After using, please cover up the suction cups.
